315 Molybdenum Evaporation Boat In Stock
- FOB Price
US $0.90100 - 200 piece
US $0.70201 - 500 piece
US $0.50501 - 1000 piece
- group name
- MOLYBDENUM BOAT
- Min Order
- 100 piece
- brand name
- GETWICK 東吉
- model
- Mo315
- Nearest port for product export
- Shanghai,, Guangzhou, Qingdao, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 08 Apr 2019 16:39:03 GMT
Packging & Delivery
- 20cm x10cm x2cm
-
Min Order100 piece
Briefing
size 0.3x15x100mm
factory price
Detailed

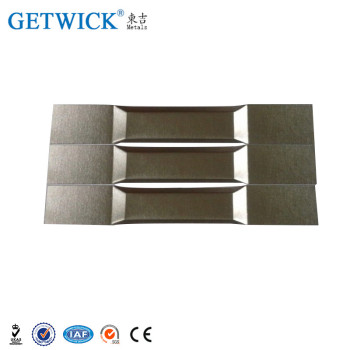

M315 Molybdenum Evaporation Boat Straight and Flat Type
We offer 99.95% Min Pure Molybdenum evaporation boat: straight boat, flat type in stock selling.
Mass in Stock, Competitive Price and Quick Delivery
Molybdenum is a particularly stable metal that is also suitable for use at high temperatures. When doped with lanthanum oxide (ML), molybdenum becomes even more ductile and corrosion-resistant.
*Evaporation Boat Material: molybdenum evaporation boat
*Evaporation Boat Type: Straight and Flat
*Process Method: Stamping
*Detailed Specification:
Thickness: 0.3mm. Width: 15mm; Length: 100mm, Recess Length: 50mm; Vol.: 1.16cc
Other Specification for this type:
Item Code | Width (mm) | Length (mm) | Thickness (mm) | Recess Length (mm) | Recess Depth (mm) | Vol. (cc) |
M310 | 10 | 100 | 0.30 | 50 | 2.1 | 0.54 |
M315 | 15 | 100 | 0.30 | 50 | 2.7 | 1.16 |
M510 | 10 | 100 | 0.50 | 50 | 2.0 | 0.48 |
Normally evaporation boats are used for high wettability materials. We also have V tub, Oval Tub and Sphere tub evaporation boats
Our materials for evaporation boats have very low evaporation rates at evaporation temperature and an extremely low vapor pressure compared to the coating materials themselves. As a result, no material from the boat ends up in the deposited layer even during long evaporation cycles.
How to choose a right Evaporation boats among material molybdenum, molybdenum, tantalum and niobium, here below are some chart that might be helpful:
Other Designs Options:
