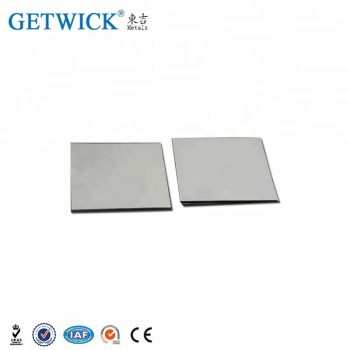

Stock of Purity 99.95% w1 tungsten plate

group name: TUNGSTEN PLATE

Min Order: 1 kilogram

brand name: GETWICK 東吉

model: W1

Nearest port for product export: Shanghai,, Guangzhou, Qingdao, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 08 Apr 2019 16:45:30 GMT

contact supplier

Paramtents

Material Tungsten
Purity 99.95% min.
Standard ASTM B760
Grade W1
Shape tungsten sheet, tungsten plate
Working temperature 2000~2600Dc
MOQ 1kg
Surface black, chemical cleaning, polished
Feature high temperature resistance
Products Name 2019 hot sale putr tungsten plate from China

Packging & Delivery

Min Order1 kilogram

Briefing

GETWICK 99.95% pure w1 tungsten sheet for sale
99.95% Polished good quality Tungsten plate for industry

Detailed

Stock of Purity 99.95% w1 tungsten plate

Item: tungsten plate and sheet

Materials: W1

Purity: 99.95%Min

Density: 19.35g/cm³

Melting Point: 3410℃

Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon

thickness and width parameters.

Properties:

High Temperature Resistance

High Hardness
High Density

Feature:

Tungsten is the highest melting point of all metals.

Low coefficient of thermal expansion.

Very high level of dimensional stability.

Main Comp.W≥99.95
Other Content≤	Fe	0.0026	Al	0.0006	Si	0.001
	Ca	0.001	Ni	0.0009	O	0.0018
	Cu	0.0005	N	0.0015	Pb	0.0001
	Sn	0.0001	Sb	0.001	As	0.001
	Cd	0.0001	Mg	0.0006	C	0.002
	Bi	0.0001	Mo	0.003

Normal specification we can provide:

Tungsten Plate/Sheet /Foil
Thickness(min) mm	Width(max) mm	Length(max) mm
0.05	150	500
0.06~0.09	250	500
0.1	300	500
0.12	320	550
0.15	350	1000
0.2~0.6	400	1000
0.7~0.9	400	1000
1~2	450	1000
2~10	450	600
10~15	450	500
15~25	300	500

Tolerance Chart(mm)
Thickness		Width		Length
Range	Tolerance	Range	Tolerance	Range	Tolerance
0.05~0.2	+/-0.01	30~200	+/-1	50~400	+/-2
0.2~0.3	+/-0.02	50~300	+/-1	50~400	+/-2
0.3~0.6	+/-0.03	50~300	+/-2	50~600	+/-2
0.6~1.0	+/-0.04	50~300	+/-2	50~1000	+/-3
1.0~2.0	+/-0.05	50~300	+/-2	50~1000	+/-3
2.0~4.0	+/-0.1	50~300	+/-2	50~1000	+/-3
4.0~6.0	+/-0.3	50~300	+/-2	50~600	+/-3
6.0~	+/-0.5	50~300	+/-3	50~600	+/-3

Tungsten

In the metal, tungsten has the highest melting point (3420 ℃) and the lowest vapor pressure.Even at the highest temperature of high vacuum technology, tungsten can still meet its performance requirements.Low thermal expansion, high melting point and perfect shape stability make tungsten an excellent material for glass encapsulation.The resistivity of tungsten is an important factor for tungsten to be used as heating material and high temperature furnace material.Tungsten also has high density and good adsorption capacity, so tungsten is also commonly used in the power radiation industry.

At room temperature, tungsten is brittle and difficult to process.But at a slightly higher temperature (200 ℃ -- 500 ℃), the tungsten toughness will be improved greatly.The high-temperature strength and stress of tungsten depend on the processing rate, and the annealing treatment at a certain temperature has a significant effect on the high-temperature strength and stress of tungsten.

Mechanical properties of tungsten: the mechanical properties of tungsten are affected by the purity of the material, the type and amount of alloying elements, heat treatment (annealing conditions), and crystal structure.Tungsten is a body - centered cubic lattice structure with very low ductility at room temperature.Mechanical processing or alloy addition can reduce the brittle and ductile transition temperature of tungsten, and the strength of tungsten increases with the increase of processing rate.Unlike most metals, processing also increases the ductility of tungsten, and the addition of rhenium alloys to tungsten also increases the ductility of tungsten at room temperature.Adding a small amount of La oxide can improve the mechanical properties of tungsten, especially the creep strength.

Chemical properties of tungsten: tungsten and tungsten alloys have similar corrosion resistance.In the case of molten glass, nitrogen, inert gases, molten metals, and ceramic oxides, even at very high temperatures, these substances only slightly erode tungsten as long as no other oxidants are present.

Tungsten and its alloys are widely used in lighting, electronics, medical applications and thin film technology, melting electrodes and high temperature furnaces. Getwick has been engaged in the research and development of tungsten and its alloy materials, and has developed mature production processes and high-performance tungsten materials.
