Mo1 99.95% Molybdenum Evaporation Boat for Furnace
- group name
- MOLYBDENUM BOAT
- Min Order
- 1 piece
- brand name
- GETWICK 東吉
- model
- Mo1,MLa,TZM
- Nearest port for product export
- Shanghai,, Guangzhou, Qingdao, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 18 Apr 2019 14:59:46 GMT
Paramtents
Key product Hot sale Molybdenum folding Boat for Evaporation
Grade Mo1, TZM, MLa
Working temperature 1300-1400 Centigrade
Purity 99.95% Min
Density 10.2g/cm3
Dimension User's demand
Feature High temperature resistance
Technique Welded
Application Industry
Packging & Delivery
-
Min Order1 piece
Briefing
Hot sale Molybdenum folding Boat for Evaporation Source
Detailed

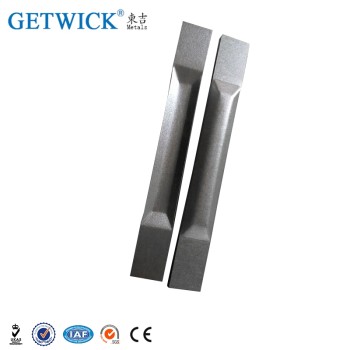

Mo1 99.95% Molybdenum Evaporation Boat for Furnace
Molybdenum Evaporation Boat Straight and Flat Type.We offer 99.95% Min Pure Molybdenum evaporation boat: straight boat, flat type in stock selling.Mass in Stock, Competitive Price and Quick Delivery.Molybdenum is a particularly stable metal that is also suitable for use at high temperatures. When doped with lanthanum oxide (ML), molybdenum becomes even more ductile and corrosion-resistant.
1.Grade:Mo1
2.density:10.2g/cm3
3.standard: ASTM B386
4.Mo content:≥99.95%
5.Material: molybdenum evaporation boat
6.Type: Straight and Flat
7.Process Method: Stamping
Detailed Specification:
Item Code | Width (mm) | Length (mm) | Thickness (mm) | Recess Length (mm) | Recess Depth (mm) | Vol. (cc) |
W310 | 10 | 100 | 0.30 | 50 | 2.1 | 0.54 |
W315 | 15 | 100 | 0.30 | 50 | 2.7 | 1.16 |
W510 | 10 | 100 | 0.50 | 50 | 2.0 | 0.48 |
Normally evaporation boats are used for high wettability materials.
We also have V tub, Oval Tub and Sphere tub evaporation boats
Our materials for evaporation boats have very low evaporation rates at evaporation temperature and an extremely low vapor pressure compared to the coating materials themselves. As a result, no material from the boat ends up in the deposited layer even during long evaporation cycles.
How to choose a right Evaporation boats among material tungsten, molybdenum, tantalum and niobium, here below are some chart that might be helpful:
Evaporation Rate VS Temperature Vapor Pressure VS Temperature
Specific electric resistance VS Temperature
1. Vacuum Furnace
2. Ceramics industry
3. Can also be used in high temperature furnace and glass industries, etc.
Feature
1. Low thermal expansivity
2. High using temperature
3. Good corrosion resistence
4. High strength
5. Low electrical resistivity
6. Manufacturing based on customer’s request
