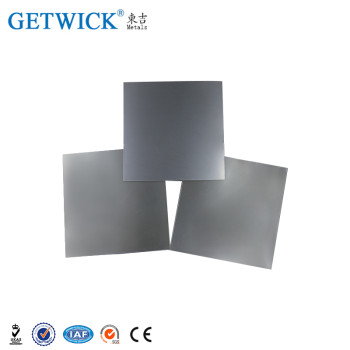

High Quality Mo1 Molybdenum Plate For High Temperature Vacuum Furnace Manufacturing
- group name
- MOLYBDENUM PLATE
- Min Order
- 1 kilogram
- brand name
- GETWICK 東吉
- model
- 364, MLa
- Nearest port for product export
- Shanghai,, Guangzhou, Qingdao, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 08 Apr 2019 16:01:59 GMT
Paramtents
Key product High Density Buy Molybdenum Plate/Sheet
Material Molybdenum Lanthanated Alloy Sheet
Feature High temperature resistance
Application Vacuum furnace heatsheild
Standard ASTM B386
Grade 361, Mo1
Purity 99.95% Min
Working temperature 1700 - 1900
Advantage Factory supply price
Packging & Delivery
-
Min Order1 kilogram
Briefing
99.95% Pure Molybdenum Plate Mo for Vacuum Coating
Detailed
Product information
Item | pure moly sheet molybdenum metal plate suppliers and mu metal sheet |
Standard | ASTM B386, GB/T3876 |
Grade | Mo1, 361 |
Material | 99.95% min. Mo |
Density | 10.2g/cm3 |
Melting Point | 2610 Centigrade |
Using temperature | 1400 Centigrade max. |
Size | Thick 0.025mm min. x W600mm max. x L3000mm max. |
Processing | Cold rolled, Stress relief annealing, Hot rolled |
Colour | Black or bright |
Package | Standard wooden case as your request |
Feature
1. Low thermal expansivity
2. High using temperature
3. Good corrosion resistence
4. High strength
5. Low electrical resistivity
Surface:shiny, acid pickling, satin, or as-rolled condition; dependent upon thickness and width parameters.Normal condition: cold-rolled bright, acid pickling, polished.
Chemical requirements
Element | Ni | Mg | Fe | Pb | Al | Bi | Si | Cd | Ca | P |
Concentration(%) | 0.003 | 0.002 | 0.005 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.001 |
Element | C | O | N | Sb | Sn | Mo |
|
|
| |
Concentration(%) | 0.01 | 0.003 | 0.003 | 0.0005 | 0.0001 | balance |
|
|
| |
Normal specification we can provide:
Molybdenum Plate/Sheet /Foil/Strip | ||
Thickness(min) mm | Width(max) mm | Length(max) mm |
0.025~0.09 | 150 | 1000 |
0.1 | 350 | 1500 |
0.12 | 400 | 1500 |
0.15 | 420 | 1500 |
0.2 | 450 | 2000 |
0.3~1 | 550 | 2500 |
1.5~5 | 500 | 2000 |
5~25 | 500 | 1500 |
Tolerance Chart
Tolerance Chart(mm) | |||||
Thickness | Width | Length | |||
Range | Tolerance | Range | Tolerance | Range | Tolerance |
0.1~0.15 | +/-0.1 | 50~200 | +/-1 | 100~1500 | +/-3 |
0.15~0.30 | +/-0.02 | 50~200 | +/-1 | 100~1500 | +/-3 |
0.3~0.5 | +/-0.03 | 50~200 | +/-1 | 100~1800 | +/-3 |
0.5~0.7 | +/-0.04 | 50~500 | +/-2 | 100~2000 | +/-3 |
0.7~1 | +/-0.05 | 50~600 | +/-2 | 50~2000 | +/-3 |
1.0~2.0 | +/-0.05 | 50~600 | +/-2 | 50~2000 | +/-4 |
2.0~3.0 | +/-0.05 | 50~550 | +/-2 | 50~1500 | +/-5 |
3.0~4.0 | +/-0.1 | 50~550 | +/-3 | 100~1500 | +/-5 |
4.0~5.0 | +/-0.1 | 50~550 | +/-3 | 100~1500 | +/-5 |
Application
1.Used for producing molybdenum targets, boats, discs, etc.
2. Used as protection cover in glass coating industry
3. Used for the electronics industries, such as intergrated circuit, information storage, LCD, laser storage, electronic control device, etc.
4. Mainly used as heat shield and reflection shield in high temperature furnace industry, such as vacuum furnace, sapphire growing furnace, etc.
