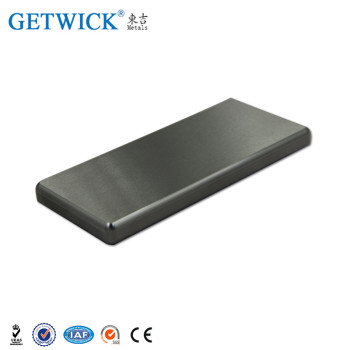

W1 0.1mm thickness high purity thinner tungsten sheet
- group name
- TUNGSTEN SHEET
- Min Order
- 1 kilogram
- brand name
- GETWICK 東吉
- model
- W1
- Nearest port for product export
- Shanghai,, Guangzhou, Qingdao, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 08 Apr 2019 16:45:00 GMT
Paramtents
Material Tungsten
Purity 99.95% min.
Standard ASTM B760
Grade W1
Shape tungsten sheet, tungsten plate
Working temperature above 2000Dc
MOQ 1kg
Surface black, chemical cleaning, polished
Feature high temperature resistance
Products Name W1 0.1mm high purity thinner tungsten sheet
Packging & Delivery
-
Min Order1 kilogram
Briefing
99.95% Polished good quality Tungsten plate for industry
Detailed
Item: tungsten plate & sheet
Materials: W1,W2
Purity: 99.95%
Density: 19.35g/cm³
Melting Point: 3410℃
Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width parameters.
Feature:
tungsten is the highest melting point of all metals.
low coefficient of thermal expansion.
very high level of dimensional stability.
Main Comp.W≥99.95 | ||||||
Other Content≤ | Fe | 0.0026 | Al | 0.0006 | Si | 0.001 |
| Ca | 0.001 | Ni | 0.0009 | O | 0.0018 |
| Cu | 0.0005 | N | 0.0015 | Pb | 0.0001 |
| Sn | 0.0001 | Sb | 0.001 | As | 0.001 |
| Cd | 0.0001 | Mg | 0.0006 | C | 0.002 |
| Bi | 0.0001 | Mo | 0.003 |
| |
Normal specification we can provide:
Tungsten Plate/Sheet /Foil | ||
Thickness(min) mm | Width(max) mm | Length(max) mm |
0.05 | 150 | 500 |
0.06~0.09 | 250 | 500 |
0.1 | 300 | 500 |
0.12 | 320 | 550 |
0.15 | 350 | 1000 |
0.2~0.6 | 400 | 1000 |
0.7~0.9 | 400 | 1000 |
1~2 | 450 | 1000 |
2~10 | 450 | 600 |
10~15 | 450 | 500 |
15~25 | 300 | 500 |
Tolerance Chart(mm) | |||||
Thickness | Width | Length | |||
Range | Tolerance | Range | Tolerance | Range | Tolerance |
0.05~0.2 | +/-0.01 | 30~200 | +/-1 | 50~400 | +/-2 |
0.2~0.3 | +/-0.02 | 50~300 | +/-1 | 50~400 | +/-2 |
0.3~0.6 | +/-0.03 | 50~300 | +/-2 | 50~600 | +/-2 |
0.6~1.0 | +/-0.04 | 50~300 | +/-2 | 50~1000 | +/-3 |
1.0~2.0 | +/-0.05 | 50~300 | +/-2 | 50~1000 | +/-3 |
2.0~4.0 | +/-0.1 | 50~300 | +/-2 | 50~1000 | +/-3 |
4.0~6.0 | +/-0.3 | 50~300 | +/-2 | 50~600 | +/-3 |
6.0~ | +/-0.5 | 50~300 | +/-3 | 50~600 | +/-3 |
Production Process
Application
For producing electric light source parts and electric vacuum components
For producing heating elements and refractory parts in high temperature furnaces
Used as electrodes in the field of rare earth metal industry
Used in military of some aspects
For medical aspects
Be used to make decorations and etc.
