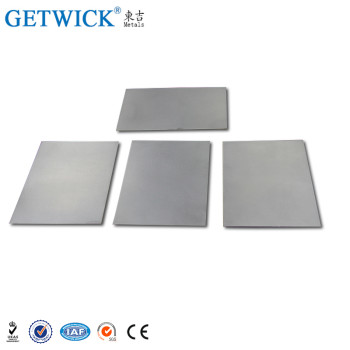

Pure W1 Tungsten Sheet Metal Price per kg from GETWICK
- group name
- TUNGSTEN SHEET
- Min Order
- 1 kilogram
- brand name
- GETWICK 東吉
- model
- W1
- Nearest port for product export
- Shanghai,, Guangzhou, Qingdao, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 08 Apr 2019 16:45:00 GMT
Paramtents
Material Tungsten
Purity 99.95% min.
Standard ASTM B760
Grade W1
Shape tungsten sheet, tungsten plate
Working temperature above 2000Dc
MOQ 1kg
Surface black, chemical cleaning, polished
Feature high temperature resistance
Products Name Pure W1 Tungsten Sheet Metal Price per kg
Packging & Delivery
-
Min Order1 kilogram
Briefing
99.95% Polished good quality Tungsten plate for industry
Detailed
1.Applications:
* For producing electric light source parts,components of electric vacuum;
* For producing W-boats,heat shield and heat bodies in high temperature furnace.
2.Size: 0.05mm min.( Thickness ) x 400mm max.( Width ) x 1000mm max.( Length )
3.Purity: 99.95%min.
4.Standard: ASTM B760 or GB3875-83
5.ASTM B760 as follows:
Chemical composition | |
Element | Max |
C | 0.01 |
O | 0.01 |
N | 0.01 |
Fe | 0.01 |
Ni | 0.01 |
Si | 0.01 |
6.Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width parameters.
Normal specification we can provide:
Tungsten Plate/Sheet /Foil | ||
Thickness(min) mm | Width(max) mm | Length(max) mm |
0.05 | 150 | 500 |
0.06~0.09 | 250 | 500 |
0.1 | 300 | 500 |
0.12 | 320 | 550 |
0.15 | 350 | 600 |
0.2~0.6 | 400 | 600 |
0.7~0.9 | 400 | 800 |
1~2 | 450 | 800 |
2~10 | 450 | 600 |
10~15 | 450 | 500 |
15~25 | 300 | 500 |
7.Our products is available in a wide range of forms including nut, screw ,ring ,wire, foil, sheet,rod, strip, plate, tube, alloys according to Standard ASTM AMS ASME MIL DMS JIS GB, etc.
8.If you have any needing or question ,pls tell me and i would like you try my best to help you.Looking forward to hearing from you.
