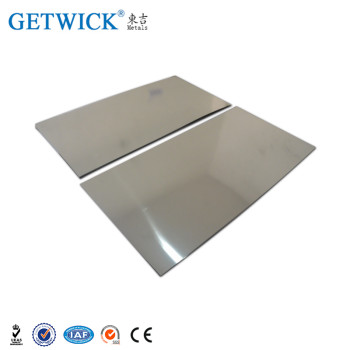

GETWICK 0.3mm ASTM B386 Mola Tzm and 99.95% Pure Molybdenum Plate Strip Sheet

group name: MOLYBDENUM PLATE

Min Order: 1 kilogram

brand name: GETWICK 東吉

model: 364, MLa

Nearest port for product export: Shanghai,, Guangzhou, Qingdao, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 08 Apr 2019 16:01:59 GMT

contact supplier

Paramtents

Key product High Density Buy Molybdenum Plate/Sheet
Material Molybdenum Lanthanated Alloy Sheet
Feature High temperature resistance
Application Vacuum furnace heatsheild
Standard ASTM B386
Grade 361, Mo1
Purity 99.95% Min
Working temperature 1700 - 1900
Advantage Factory supply price

Packging & Delivery

Min Order1 kilogram

Briefing

0.3mm ASTM B386 99.95% Pure Molybdenum Plate Sheet
0.025-25mm Thickness Competitive Molybdenum Plate for Electric Vacuum

Detailed

GETWICK 0.3mm ASTM B386 Mola TZM and 99.95% Pure Molybdenum Plate Strip Sheet

Product information

Item	pure moly sheet molybdenum metal plate suppliers and mu metal sheet
Standard	ASTM B386, GB/T3876
Grade	Mo1, 361
Material	99.95% min. Mo
Density	10.2g/cm3
Melting Point	2610 Centigrade
Using temperature	1400 Centigrade max.
Size	Thick 0.025mm min. x W600mm max. x L3000mm max.
Processing	Cold rolled, Stress relief annealing, Hot rolled
Colour	Black or bright
Package	Standard wooden case as your request

Feature

1. Low thermal expansivity

2. High using temperature

3. Good corrosion resistence

4. High strength

5. Low electrical resistivity

Surface:shiny, acid pickling, satin, or as-rolled condition; dependent upon thickness and width parameters.Normal condition: cold-rolled bright, acid pickling, polished.

Chemical requirements

Element	Ni	Mg	Fe	Pb	Al	Bi	Si	Cd	Ca	P
Concentration(%)	0.003	0.002	0.005	0.0001	0.002	0.0001	0.002	0.0001	0.002	0.001
Element	C	O	N	Sb	Sn	Mo
Concentration(%)	0.01	0.003	0.003	0.0005	0.0001	balance

Normal specification we can provide:

Molybdenum Plate/Sheet /Foil/Strip
Thickness(min) mm	Width(max) mm	Length(max) mm
0.025~0.09	150	1000
0.1	350	1500
0.12	400	1500
0.15	420	1500
0.2	450	2000
0.3~1	550	2500
1.5~5	500	2000
5~25	500	1500

Tolerance Chart(mm)
Thickness		Width		Length
Range	Tolerance	Range	Tolerance	Range	Tolerance
0.1~0.15	+/-0.1	50~200	+/-1	100~1500	+/-3
0.15~0.30	+/-0.02	50~200	+/-1	100~1500	+/-3
0.3~0.5	+/-0.03	50~200	+/-1	100~1800	+/-3
0.5~0.7	+/-0.04	50~500	+/-2	100~2000	+/-3
0.7~1	+/-0.05	50~600	+/-2	50~2000	+/-3
1.0~2.0	+/-0.05	50~600	+/-2	50~2000	+/-4
2.0~3.0	+/-0.05	50~550	+/-2	50~1500	+/-5
3.0~4.0	+/-0.1	50~550	+/-3	100~1500	+/-5
4.0~5.0	+/-0.1	50~550	+/-3	100~1500	+/-5

pure moly sheet molybdenum metal plate suppliers and mu metal sheet

Application

1.Used for producing molybdenum targets, boats, discs, etc.

2. Used as protection cover in glass coating industry

3. Used for the electronics industries, such as intergrated circuit, information storage, LCD, laser storage, electronic control device, etc.

4. Mainly used as heat shield and reflection shield in high temperature furnace industry, such as vacuum furnace, sapphire growing furnace, etc.

pure moly sheet molybdenum metal plate suppliers and mu metal sheet
