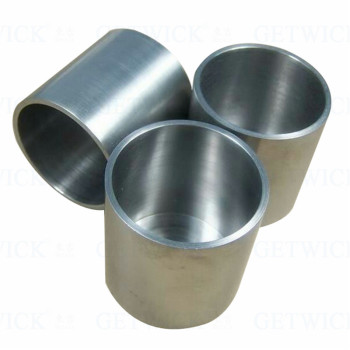

Supply 99.95% Wolfram Metal Melting Container Tungsten Crucible

group name: TUNGSTEN CRUCIBLE

Min Order: 1 piece

brand name: GETWICK 東吉

model: W1

Nearest port for product export: Shanghai,, Guangzhou, Qingdao, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 18 Apr 2019 14:59:59 GMT

contact supplier

Paramtents

Product name pure tungsten crucible wolfram liner
Melting point 3410℃
Using tempersture 2000-2600℃
Size all kinds of tungsten crucible
Purity 99.95%min.
Density 19.3g/cm3
Feature 1 high temperature resistance
Feature 2 long service life
Surface Polished
Certificate ISO9001:2015

Packging & Delivery

Min Order1 piece

Briefing

High Quality High Density Tungsten Crucible
pure tungsten crucible wolfram liner for evaporation coating

Detailed

Supply 99.95% Wolfram Metal Melting Container Tungsten Crucible

Specifications:

Name: China factory polished tungsten crucible for sale

Appearance: Metal luster
Density:19.35g/cm3

Purity: W≥99.95%
Processing: Forging, sintering and repression

Dimension: As customer request or as drawings

Our testing for Tungsten Crucibles
Mo	C	Ca	O	Mg	Si
≤0.003%	≤0.005%	≤0.002%	≤0.0012%	≤0.005%	≤0.00005%
Al	Fe	Ni	Pb	P	Cu
≤0.001%	≤0.001%	≤0.001%	≤0.001	≤0.0005	≤0.0005
N	W1
≤0.001	Balance

1.According to different processing methods, tungsten crucibles for vacuum coating can be mainly divided into sintered molding, press molding, spinning molding, turning forming and welding forming.

2.Turning forming is mainly applied. We recommend the working temperature of the tungsten crucible for vacuum coating should be controlled below 2600℃.

3.We can produce tungsten crucible for vacuum coating according to the customer drawing.

Features

1.Tungsten crucible for vacuum coating is mainly used as containers and heating element for evaporation coating machine in optical glasses and spectacles field.

2.It has great strength under high temperature, anti-friction corrosion resistance;

3.It also possesses high thermal conductivity, thermal expansion coefficient and good harden ability.

Application

1.Tungsten crucible for vacuum coating products are widely used for smelting of rare-earth, quartz glass, electronic spraying, crystal growth and other industries. 2.Generally, sintered tungsten crucible is large while the forged one is small; the wall of rolled tungsten crucible is thin; welded tungsten crucible is cost-effective but owns inferior intensity.

3.Tungsten crucible under turning forming is denser than sintered one.
