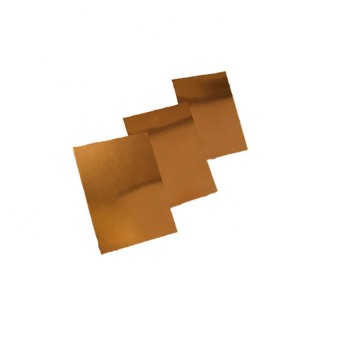

Customized Tungsten Copper Alloy WCu Plate for hot Sale

Customized Tungsten Copper Alloy WCu Plate for hot Sale
Customized Tungsten Copper Alloy WCu Plate for hot SaleCustomized Tungsten Copper Alloy WCu Plate for hot SaleCustomized Tungsten Copper Alloy WCu Plate for hot SaleCustomized Tungsten Copper Alloy WCu Plate for hot SaleCustomized Tungsten Copper Alloy WCu Plate for hot Sale
FOB Price

US $80.001 - 10 kilogram

US $75.0011 - 50 kilogram

group name
TUNGSTEN COPPER ALLOY PLATE
Min Order
1 kilogram
brand name
GETWICK 東吉
model
WCu alloy
Nearest port for product export
Shanghai,, Guangzhou, Qingdao, Tianjin
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Mon, 15 Apr 2019 14:03:17 GMT

Paramtents

  • key material tungsten

  • composition WCu Alloy

  • shape WCu plate

  • surface bright

  • feature high temperature resistance

  • standard ASTM B760

  • advantage high quality with factory price

  • color metallic

  • size Thick 0.05mm. min. x W400mm max. x L1000mm max.

  • melting point 3240Dc

Packging & Delivery

  • Min Order1 kilogram

Briefing

Hot Sale Tungsten Copper Alloy WCu Plate
high temperature resistance
factory price

Detailed

Customized Tungsten Copper Alloy WCu Plate for hot Sale

general

Item: tungsten plate & sheet

MaterialsW1,W2

Purity99.95%

Density19.35g/cm³

Melting Point3410℃

Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width parameters.

Feature:

tungsten is the highest melting point of all metals.

low coefficient of thermal expansion.

very high level of dimensional stability.

Main Comp.W≥99.95

Other Content≤

Fe

0.0026

Al

0.0006

Si

0.001



Ca

0.001

Ni

0.0009

O

0.0018



Cu

0.0005

N

0.0015

Pb

0.0001



Sn

0.0001

Sb

0.001

As

0.001



Cd

0.0001

Mg

0.0006

C

0.002



Bi

0.0001

Mo

0.003




Normal specification we can provide:

Tungsten Plate/Sheet /Foil

 Thickness(min) mm

       Width(max) mm

Length(max) mm

0.05

150

500

0.06~0.09

250

500

0.1

300

500

0.12

320

550

0.15

350

1000

0.2~0.6

400

1000

0.7~0.9

400

1000

1~2

450

1000

2~10

450

600

10~15

450

500

15~25

300

500


Tolerance  Chart(mm)

Thickness

Width

Length

Range

Tolerance

Range

Tolerance

Range

Tolerance

0.05~0.2

+/-0.01

30~200

+/-1

50~400

+/-2

0.2~0.3

+/-0.02

50~300

+/-1

50~400

+/-2

0.3~0.6

+/-0.03

50~300

+/-2

50~600

+/-2

0.6~1.0

+/-0.04

50~300

+/-2

50~1000

+/-3

1.0~2.0

+/-0.05

50~300

+/-2

50~1000

+/-3

2.0~4.0

+/-0.1

50~300

+/-2

50~1000

+/-3

4.0~6.0

+/-0.3

50~300

+/-2

50~600

+/-3

6.0~

+/-0.5

50~300

+/-3

50~600

+/-3

Production Process

pure tungsten plate with reasonable price

pure tungsten plate with reasonable price

Application

For producing electric light source parts and electric vacuum components

For producing heating elements and refractory parts in high temperature furnaces

Used as electrodes in the field of rare earth metal industry

Used in military of some aspects

For medical aspects

Be used to make decorations and etc.
